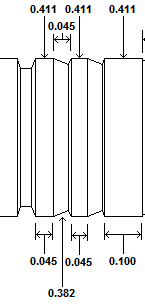

Crimp Band Detail
- Enter the number of crimp grooves desired.
- If the Standard crimp style is selected, the crimp Groove Dia. will be determined by the crimp Ramp< and automatically
- calculated.
- If the Square crimp or the Round crimp style is selected, the crimp Groove Dia. may be edited as desired.
- If more than 1 crimp groove is selected, enter the Interval between the grooves.
- Enter the length of the crimp groove Lower Band.
- The O.A.L. of the crimp grooves and band is automatically calculated.
- If the Crimp Length in the Bullet Parameter section is changed, the groove depth will be recalculated.
