Print Load
The selected load information may be printed out onto an 8 1/2" x 11" sheet.
If Images of the firearm, cartridge head stamp and bullet configuration are stored in the databases, those images will be included in the printout sheet.

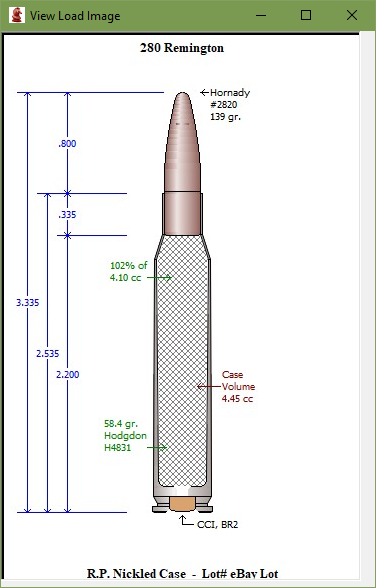

To show a cartridge image on the printed load sheet, click the button titled "Image this Load" to open the Cartridge Draw and Save application.

If the optional imaging process are disabled in the menu item at the top left of the main form. To print the load sheet, at the top of the form, go to the menu item titled Printed Reports to print the load sheet.

If the optional imaging process are enabled, the Load Data print controls will be located at the lower left of the main form when the focus is in the load records section.

The load image contained in the printout for each individual load is optional.

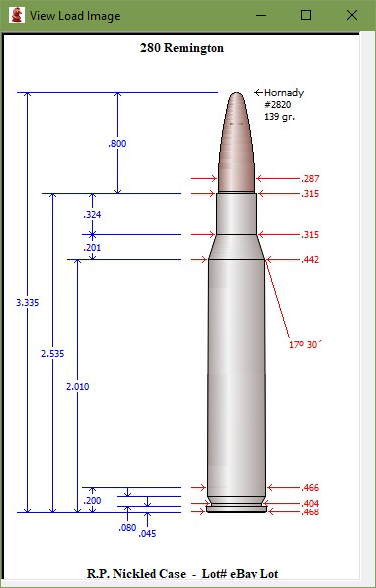

The image style and information content may be specified while in the Draw Cartridge application.

The images may be installed into the printed load record individually or by using a batch draw process outlined in the Draw Cartridge application.
