Transfer individual records to Precision Ballistics and Load Records
If the Precision Ballistics, Load Records or G1 BC calculator modules are installed on the computer, this module can transfer bullet dimension data and images to the Active, Cast and Jacketed bullet databases used by the Precision modules.

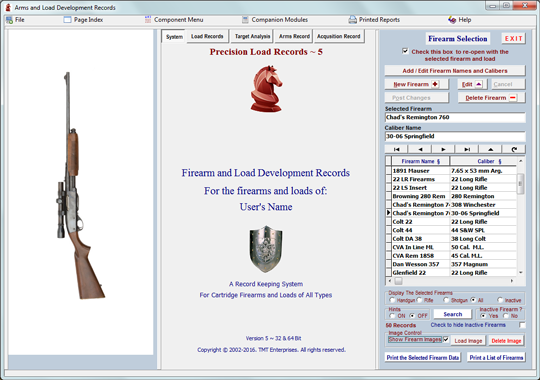

The Precision Load Records Software

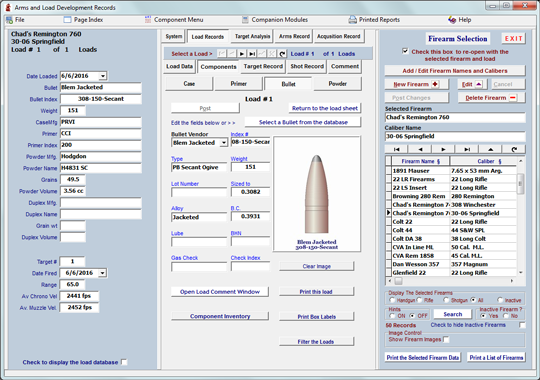

The new, Version~5 Precision Ballistics and Precision Load Records software modules provide an option that displays bullet images and dimensions.

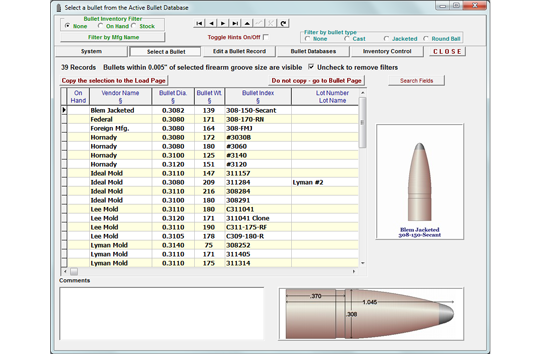

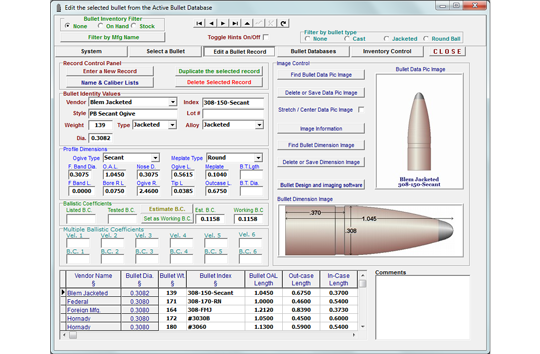

The Precision Load Records Software ~ Active Bullet Database
This Bullet Design option may be used to filter or select a collection of bullet design dimension data and images that may be copied to the Precision Ballistics and Load Records' Active Bullet Database.
Single, selected records or all selected records may be copied to the Active Bullet database with the following options:
A. Copy all selected record(s) to the Active Bullet database and either:
1. Replace any existing record.
2. Write a duplicate of any existing record tagged as a (duplicate).
B. Copy the selected record or all selected records only if existing, matching records are found in the Active Bullet database and either;
1. Replace the existing record.
2. Write a duplicate of the existing record tagged as a (duplicate).
The Precision Ballistics and Load Records software also contains 2 additional bullet archive data bases of cast bullet and jacketed bullet records. The copy process will also search these databases for matching records. If a matching record is found, the record will be moved to the Active Bullet database and processed according to the options selected above. The record will also be tagged as having been moved from the archive database.( This prevents the duplication of existing records causing indexing problems).

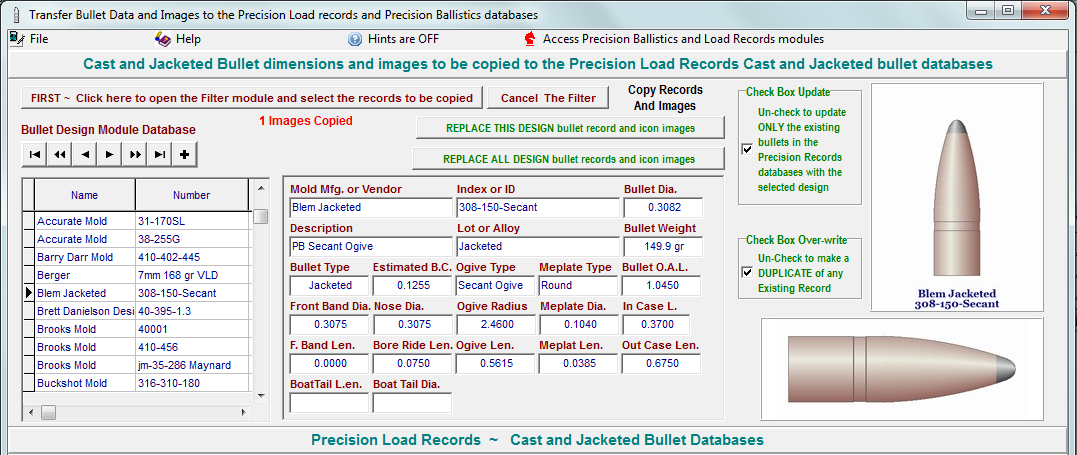

Precision Ballistics and Precision Load Records setup
First: Open the Database Filter Module to select the group of records to copy to the Active Bullet database.

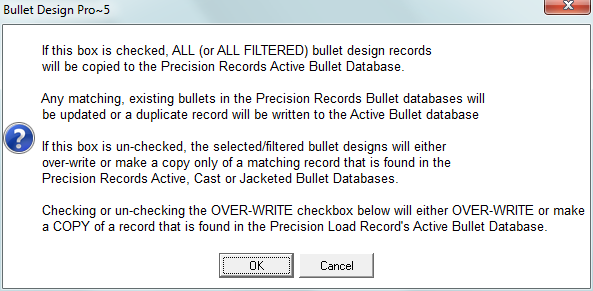

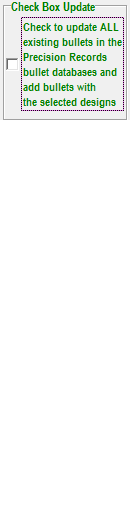

Next: Select the copy options;

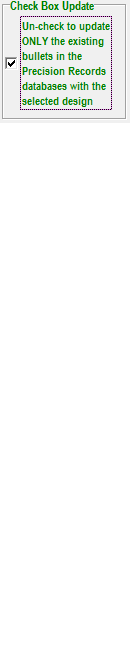

1. From the selected Design records, add only those records present in the Load Records Active database.

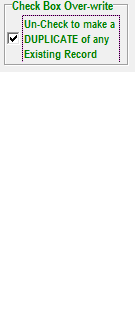

(a.) Make a duplicate copy of those Design records that are already present. in the Load Records Active database.
Duplicate one selected record or replace all selected records.
Or:

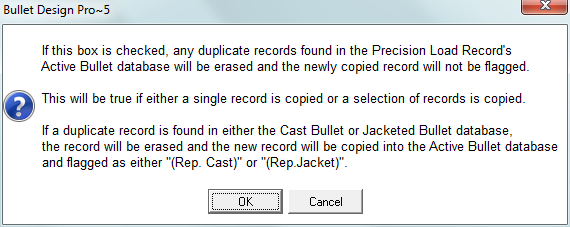

(b.) Delete any records present in the Load Records Active database that match the Design records and write a new record.
Replace one selected record or replace all selected records
2. Add all selected Design record(s) to the Load Records Active database;
(a.) Make a duplicate copy of those Design records that are already present. in the Load Records Active database.
Duplicate one selected record or replace all selected records.
Or:
(b.) Delete any records present in the Load Records Active database that match the Design records and write a new record.
Replace one selected record or replace all selected records.

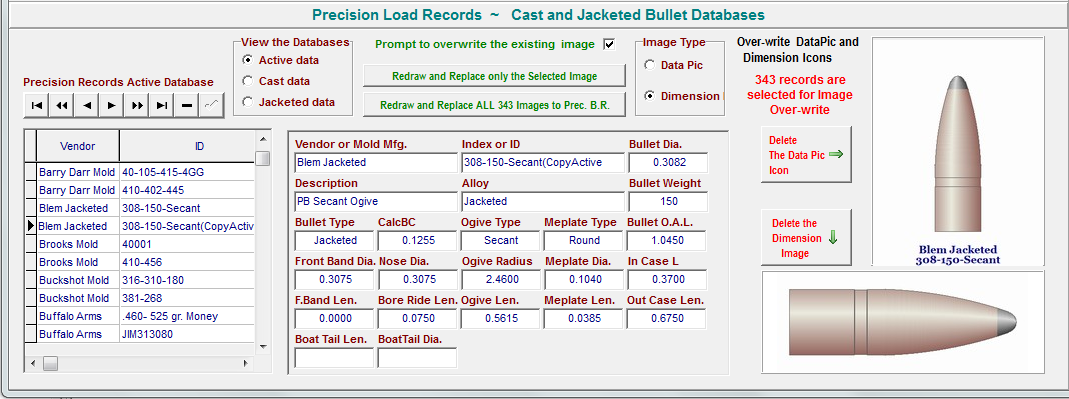

The scaled Icon image that is copied to the Active Bullet database may be replaced with an unscaled, dimensioned image.
And the Active database records may be compared, examined, and selectively deleted from this portion of the Module
