Cartridge List

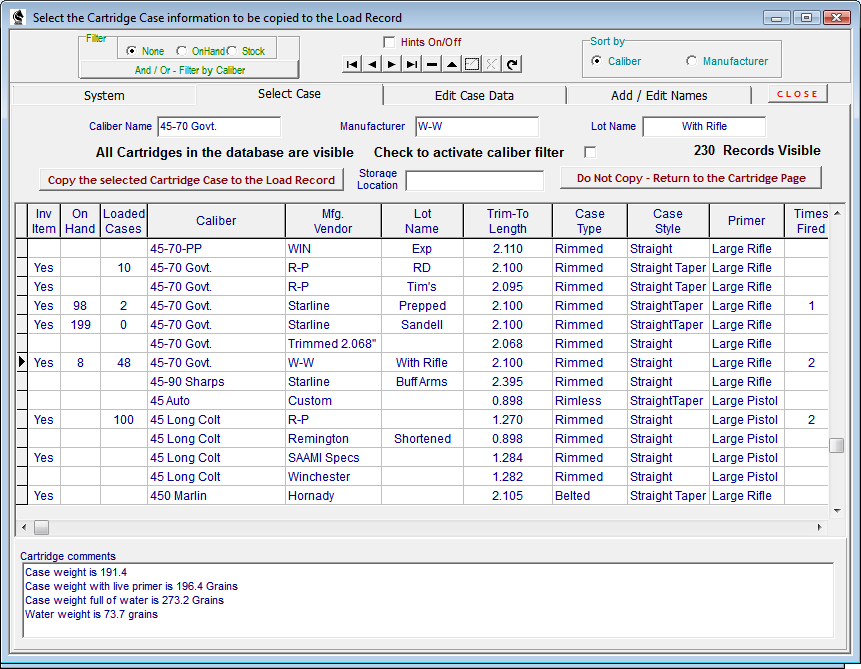

Clicking the Select button in the Load Data Cartridge Panel will access this module. The list of cartridges will be filtered to show only the caliber that is listed for the current load. The On-Hand and In-Stock filter will also be activated. If the cartridge case record is visible, select the record and then click the button labeled "Copy the selected Cartridge Case to the Load Record". The Manufactures name, Trim Length and Lot Name will then be copied to the Load Record Page.
More

If the record for the cartridge has been checked to show as an inventory item, the selection will be visible and ready to be copied to the Load Data Page. If no cartridge selections are visible, click the filter Off/On checkbox

and then select the "None" button in the On-Hand / In-Stock

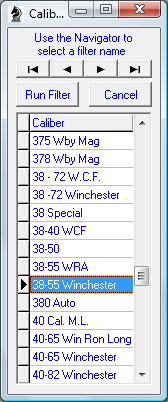

panel then click the And / Or - Filter by Caliber button to open the Caliber Filter List. Select a caliber and click the "Run Filter" Button. All Cartridges in the database with the caliber designation selected will then be shown.

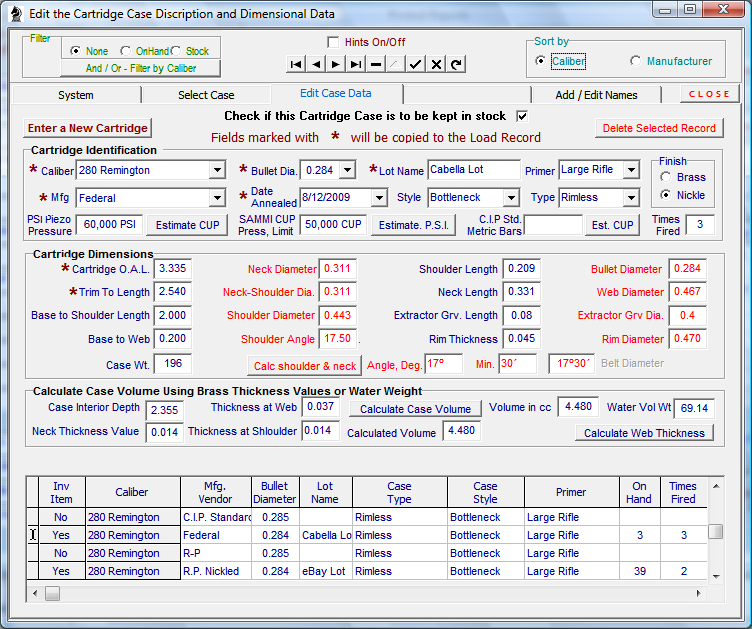

Edit Case Data

Cartridge case records may be entered and edited from this page. Use the Database Navigator bar or the Caliber Filter Module to search the database for a cartridge. If a new cartridge record needs to be entered then begin by clicking the "Enter a New Record" button. This will open a new, blank record where the vital statistics of the cartridge case may be entered. The Caliber, Manufacturer, and Bullet Diameter fields must be must be filled with selections from the Drop Down Lists which are opened by clicking the small

down arrow at the right of the Caliber, Mfg. and Bullet Diameter entry fields. Data may then be entered in the remaining fields by using the Tab Key to navigate through the fields.
The fields marked with an astirisk will be copied to the Load Record when the record is selected for the load.

If the Cartridge Case is to be recorded in the Load Data page, click the "Check if this Cartridge Case is to be kept in stock" checkbox and the selection will then be visible in the Select Case page when the Cartridge module is opened from the Cartridge Data Panel page
More

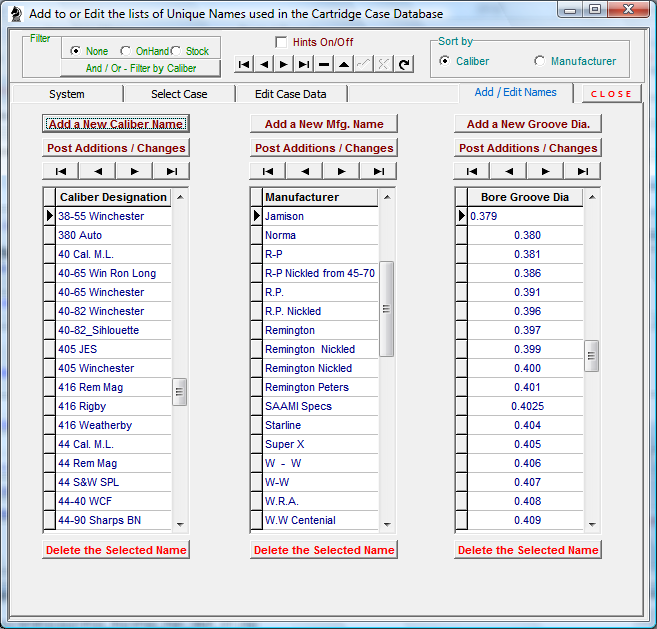

If Caliber, Manufacturer and Diameter names are not found in the Drop Down Lists, they may be added to the lists from the Add / Edit Names page. Click the "Add a New * *" button to open a new, blank field and enter the desired name or Groove Diameter. Click the "Post Additions / Changes" and return to the Edit Case Data page and the newly entered selection will then be available in the Drop Down Box.
